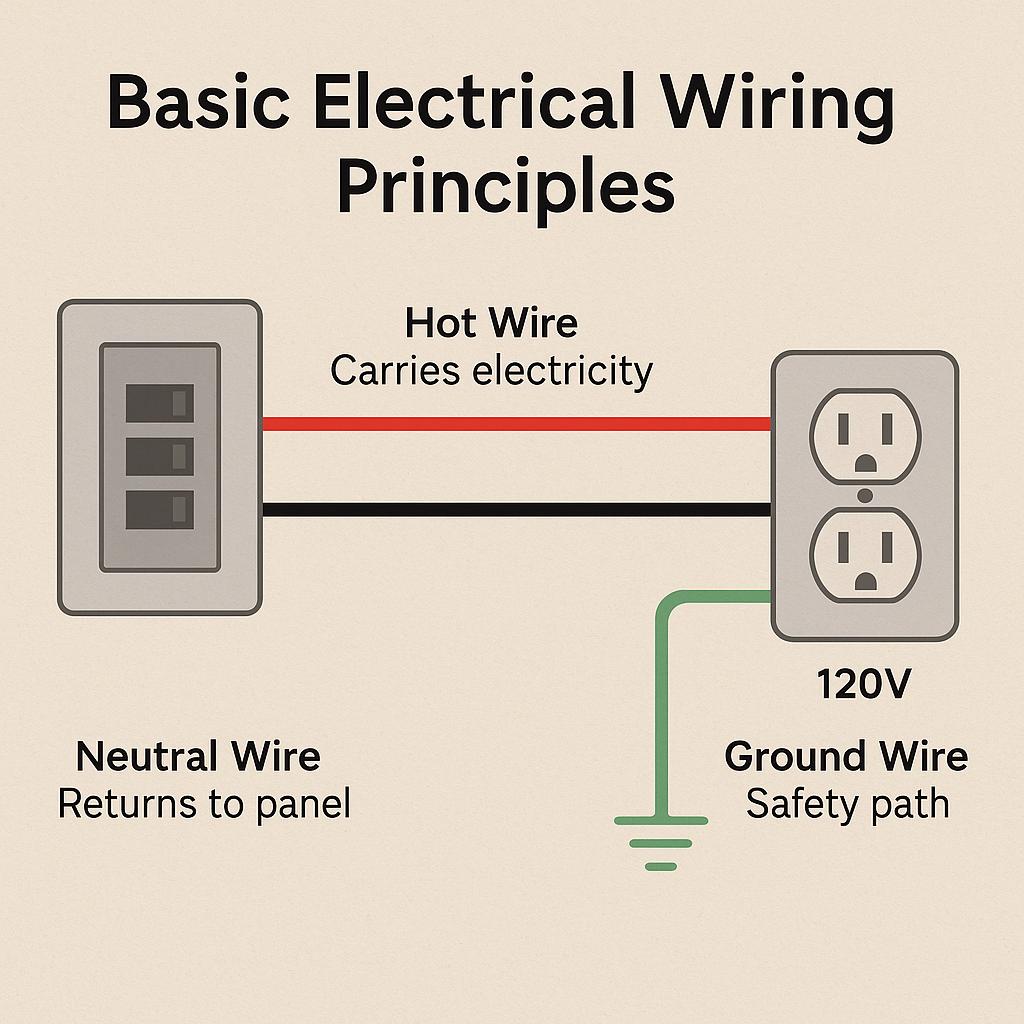

Basic Electrical Wiring Principles
Electrical wiring serves one critical function: carrying electricity from your main service panel to outlets, lights, and appliances.
- Hot wires (usually black or red) deliver current from the panel to the device.
- Neutral wires (white) complete the circuit by returning current back to the panel.
- Ground wires (bare or green) provide a safe path during electrical faults, preventing shocks.
Another crucial concept is wire gauge. Wire size determines how much current it can carry safely. For example:
- 14-gauge wire is typically used for 15-amp circuits.
- 12-gauge wire is common for 20-amp circuits.
Using the wrong gauge can overheat wires, leading to fire risks.
Essential Components for Electrical Wiring
Every electrical system has parts that work together to deliver power safely:
- Electrical panel and breakers – The main panel is your home’s command center. Breakers automatically trip when a circuit is overloaded, preventing overheating and electrical fires. Without this safeguard, wiring could melt or spark, leading to costly damage.
- Outlets – Standard outlets supply everyday power, while GFCI outlets protect against shock in kitchens, bathrooms, and outdoors by cutting power in milliseconds if moisture is detected. AFCI outlets protect against arc faults—dangerous sparks caused by damaged wires.
- Switches – Beyond turning lights on and off, switches come in single-pole for one location, three-way for multi-location control, and smart switches that integrate with voice assistants for convenience.
- Junction boxes and connectors – These metal or plastic enclosures house wire splices, keeping them protected from damage and making the installation code-compliant.
- Grounding systems – Grounding directs excess current safely into the earth. If lightning strikes or a wire fails, grounding prevents that electricity from flowing through you or your appliances.
These are the components you interact with daily, and knowing their role helps you understand how power flows in your home.
Basic Electrical Wiring Diagram
Think of wiring as a loop:
- Power flows from the panel to a breaker.
- The breaker sends electricity through wiring to a switch or outlet.
- The device (light or appliance) uses the power.
- Current flows back via the neutral wire.
- The ground wire acts as backup protection.
Even a simple sketch makes it easier for homeowners to visualize how everything connects.
Common Types of Home Electrical Wiring
Different wiring types are designed for different uses:
- Non-Metallic (NM) Cable / Romex – Most common in Fort Mill homes; used in walls and ceilings.
- Armored Cable (BX/AC) – Protected with a metal sheath, ideal for basements or exposed areas.
- Underground Feeder (UF) Cable – Waterproof, used for outdoor or underground installations.
- Conduit Systems (PVC, EMT, IMC) – Protect wires inside tubing, commonly used in garages and commercial spaces.
- Specialized wiring – Includes coaxial for TV, low-voltage for doorbells, and smart wiring for modern tech.
Wire Color Codes in Home Wiring
Wire colors aren’t just for looks—they’re essential safety markers:
- Black/Red – Hot wires: These carry electrical current from the breaker panel to the device. Think of them as the “supply lines” of your electrical system.
- White – Neutral wires: Neutrals complete the circuit by returning the current back to the panel. Without them, electricity can’t flow properly.
- Green/Bare – Ground wires: Grounding is the “safety valve.” If something goes wrong, excess current flows into the ground instead of through you.
- Older homes caution: In some Fort Mill houses built before the 1970s, you may find wiring that doesn’t match these modern color codes, which can be confusing and dangerous for DIYers. Always double-check with a voltage tester before working.
Warning: Older homes may not follow these color codes. Always confirm with a voltage tester before working on wires.
Safety Tips for Electrical Wiring
Working with electricity is dangerous without proper precautions. Always:
- Turn off power at the breaker and test before working – Don’t assume a switch is enough. Some circuits are connected in unexpected ways, and wires may remain live even when lights are off.
- Use insulated tools and PPE – A simple screwdriver without insulation can conduct electricity if you slip. Insulated handles and safety gear create an extra layer of protection.
- Correct grounding and bonding – Grounding protects people; bonding ties all metal parts together to keep voltages equal. Both are essential for modern code compliance.
- Follow NEC and local codes – The National Electrical Code is updated every three years. Fort Mill also has local amendments, so what’s legal in one state might not be approved here.
When to Consider Wiring Upgrades
Wiring doesn’t last forever. Here are signs it’s time for an upgrade:
- Frequent breaker trips or blown fuses – Breakers trip because they sense too much current. If this happens often, your home’s circuits may not handle today’s appliances, from air fryers to home offices.
- Flickering or dimming lights – This can signal loose wiring, failing connections, or circuits struggling under heavy load. If multiple lights dim when you use a microwave or AC, your wiring may be undersized.
- Warm or discolored outlets – Heat marks around outlets mean wires aren’t making tight contact. That resistance generates heat, which can ignite surrounding materials.
- Burning smells or buzzing noises – These are serious warning signs. Electricity should be silent and odorless. If you hear buzzing, something is arcing. If you smell burning plastic, shut off the power immediately.
- Knob-and-tube or aluminum wiring – Many older Fort Mill homes still use these. Knob-and-tube lacks grounding, while aluminum expands and contracts, loosening connections. Both increase fire risk.
Benefits of upgrading wiring include:
- Safety and peace of mind knowing your home is code-compliant.
- Lower electric bills thanks to efficient circuits and fewer energy losses.
- Capacity for modern living—whether you’re adding a home theater, EV charger, or smart home hub.
- Boost in resale value, as buyers look for updated electrical systems.
Energy-Efficient Electrical Upgrades for Modern Homes
Upgrading your home’s wiring isn’t just about safety—it’s also about efficiency. As energy costs rise, more Fort Mill homeowners are looking for ways to cut down on monthly bills without sacrificing comfort. Making electrical upgrades with efficiency in mind can lower your utility bills, extend the life of your appliances, and reduce your home’s environmental footprint.
1. Switch to LED Lighting Systems
Traditional incandescent bulbs waste 90% of their energy as heat. By upgrading wiring to support LED lighting, you can cut energy use by up to 75%. LEDs also last 10–25 times longer, which means fewer trips to the store and less hassle replacing bulbs. Many LED systems pair with dimmers or smart switches, giving you full control over brightness and usage.
2. Smart Switches and Programmable Outlets
Smart switches allow you to schedule lights or appliances to turn on and off automatically. This eliminates wasted energy from lights left on overnight or devices that continue drawing power when not in use. For example, a Fort Mill homeowner could program outdoor security lights to activate only from dusk to dawn, reducing unnecessary daytime usage.
3. Whole-House Surge Protection
Surge protectors do more than prevent damage during storms. They also improve efficiency by stabilizing voltage, which reduces wear on sensitive electronics. When integrated directly into your electrical panel, they protect everything from HVAC systems to laptops, extending the lifespan of your equipment.
4. Dedicated Circuits for High-Efficiency Appliances
Modern appliances such as heat pumps, EV chargers, and high-efficiency washers require their own circuits. Installing dedicated lines not only ensures safety but also improves efficiency. Instead of competing with other devices, these appliances get steady, reliable power, which reduces strain and helps them perform at peak levels.
5. Solar-Ready Wiring
Even if you don’t plan to install solar panels right away, upgrading your wiring to be solar-ready prepares your home for the future. Electricians can install conduits and panels designed for easy solar integration. When the time comes, you’ll avoid the cost of major rewiring.
6. Energy Monitoring Systems
Adding energy monitoring devices to your panel gives you real-time insights into how much power each circuit uses. Homeowners often discover that older appliances or inefficient lighting are responsible for a large share of the bill. With this knowledge, you can make smarter decisions about upgrades or replacements.
Energy-efficient wiring upgrades not only save money but also make your Fort Mill home more attractive to buyers. According to the U.S. Department of Energy, energy-efficient homes typically sell faster and for more money than those without upgrades.
Step-by-Step: Planning and Installing Wiring (Overview)
Professional installations follow a process:
- Plan circuits – Calculate load, determine breaker size, and design layout.
- Install components – Panels, breakers, outlets, switches.
- Route wires safely – Secure with staples, use conduit in exposed areas, avoid sharp bends.
- Test and inspect – Confirm NEC compliance and safe operation.
Electrical Wiring Mistakes to Avoid
Homeowners often make the same errors:
- Mixing wire gauges – Different gauges carry different amounts of current. Mixing them can lead to overheating because the thinner wire can’t handle the load.
- Undersized wires for appliances – A clothes dryer or electric stove requires thicker wires. Using smaller ones creates a hidden fire hazard.
- Overfilling electrical boxes – Every box has a fill capacity. Stuffing in too many wires generates heat and makes it nearly impossible to make secure connections.
- Not grounding properly – Skipping grounding may seem like a shortcut, but it leaves you exposed to shock if something goes wrong.
- Unpermitted DIY fixes – Without inspections, dangerous mistakes can go unnoticed until disaster strikes. Permits ensure a second set of eyes checks your work.
These mistakes can create fire hazards and cost more to repair later.
Common Home Electrical Wiring Problems & Fixes
- Flickering or Dimming Lights
Cause: loose connections or overloaded circuits.
Fix: tighten connections or redistribute loads. - Frequent Breaker Trips
Cause: overloaded circuits or faulty breakers.
Fix: reduce appliances on one circuit, or replace the breaker. - Warm or Discolored Outlets
Cause: overheating from loose wiring or overloads.
Fix: replace outlet and inspect wiring. - Non-Functioning Outlets
Cause: tripped GFCI, loose wires, or a dead circuit.
Fix: reset GFCI or replace outlet. - Burning Smells or Sparks
Cause: serious wiring issues.
Fix: shut off power immediately and call a Fort Mill electrician.
DIY Quick Fixes: Resetting GFCIs, tightening outlet screws, or swapping switches—only if you’re confident and the circuit is off.
When to Call an Electrician
Some jobs are safe for homeowners:
- Replacing switches and outlets.
- Installing light fixtures.
These are manageable if you shut off power and test wires first.
But always call a licensed electrician for:
- New circuit or panel upgrades.
- Partial or full rewiring.
- Persistent breaker trips, sparks, or burning smells.
- Smart home integrations.
